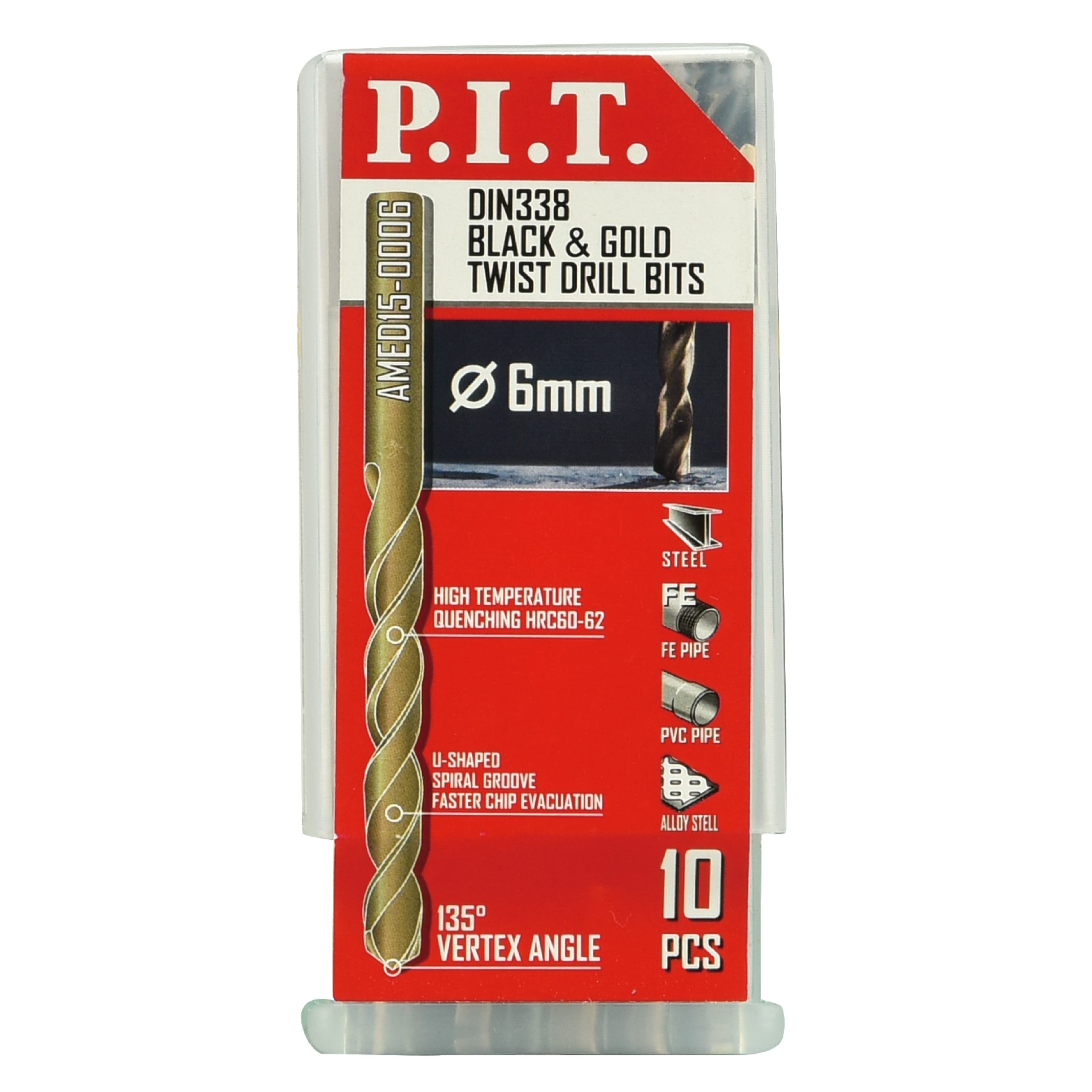

DIN338 Black & Gold Twist Drill Bits
1_2
1_1
1_3
1_4
Share to :
1_2
1_1
1_3
1_4
  • Description
  • SPECIFICATIONS
  • Customer Service
1_3

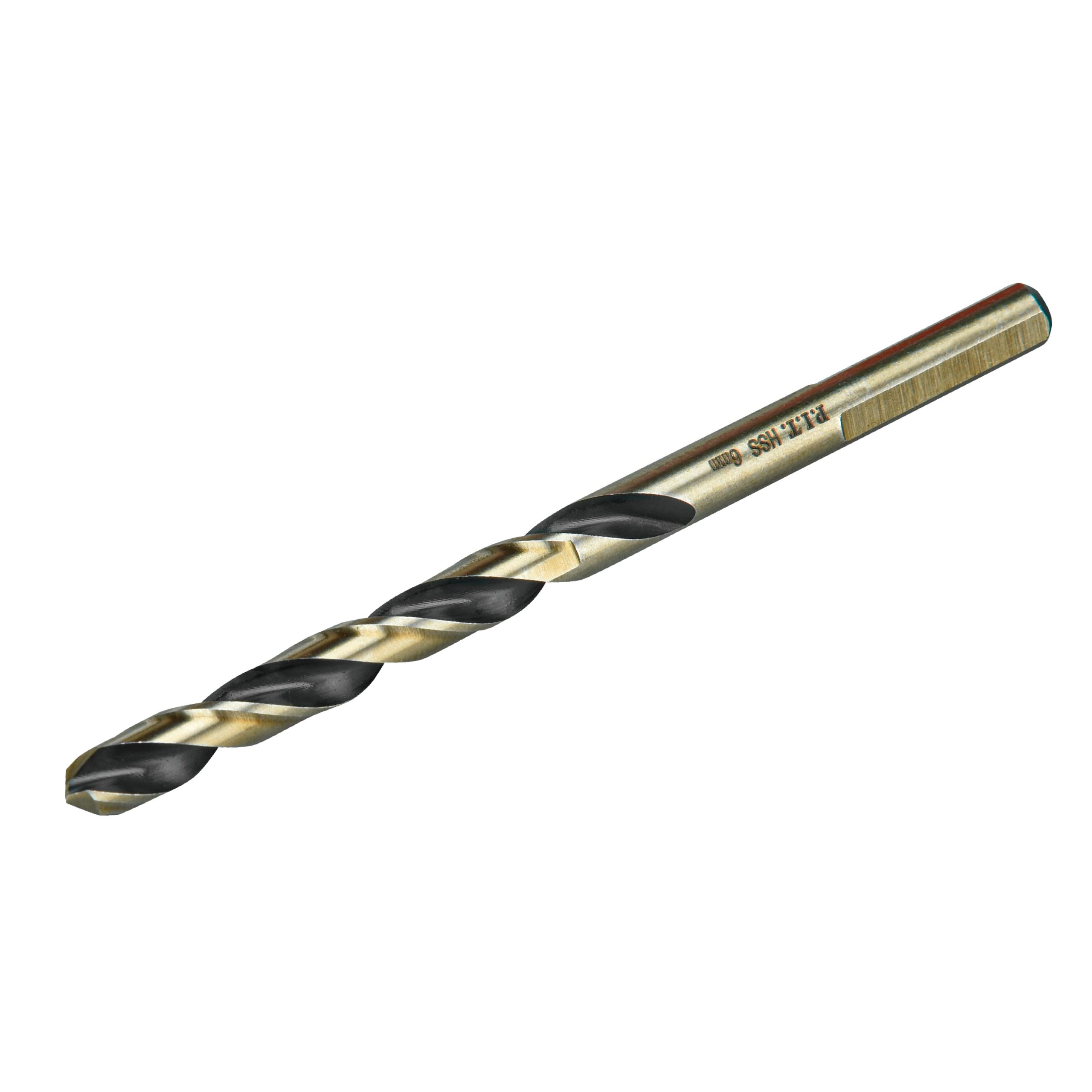

High-performance ground standard twist drill made from heavy-duty high speed steel.
The fully ground twist drill has a precise concentricity.
Thanks to the split point, this drill has good centring properties and requires little pressure.
DIN 338, right hand cut, type N, precision ground, Black & Gold colour.

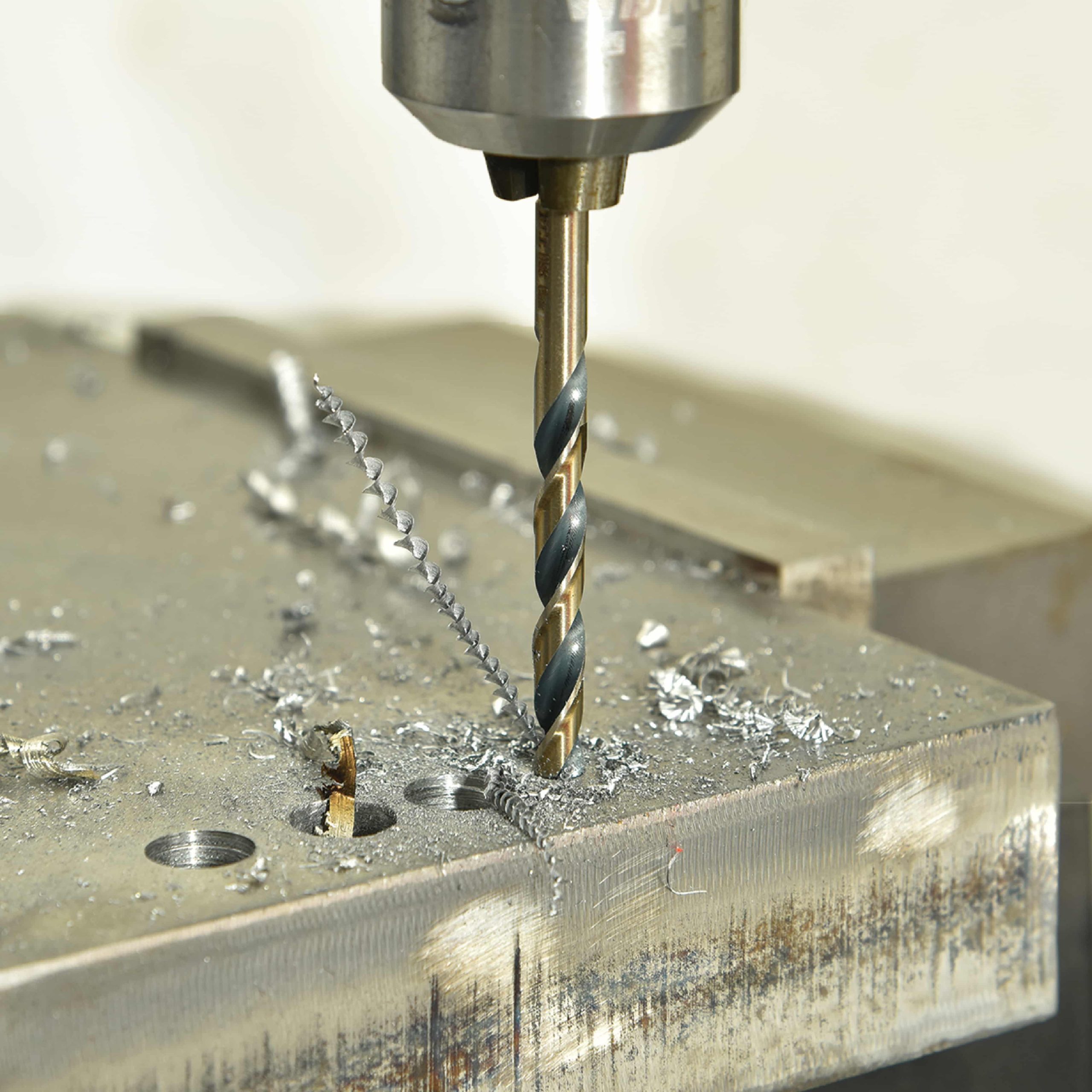

Tip angle 135 deg. cylindrical, industrial quality, Ideal for drilling steel and alloyed steel, cast steel, die castings, sintered steel, non-ferrous metals and hard plastics.

Diameter (mm)
6.0
Type
Fully Ground
Overall Length (mm)
93
Work Length (mm)
57
Point Angle
135°
Shank Type
Triangular Shank
Material
HSS M2
Pack Quantity
10
Packaging
Plastic Box+Label
