AMAS01_0616P

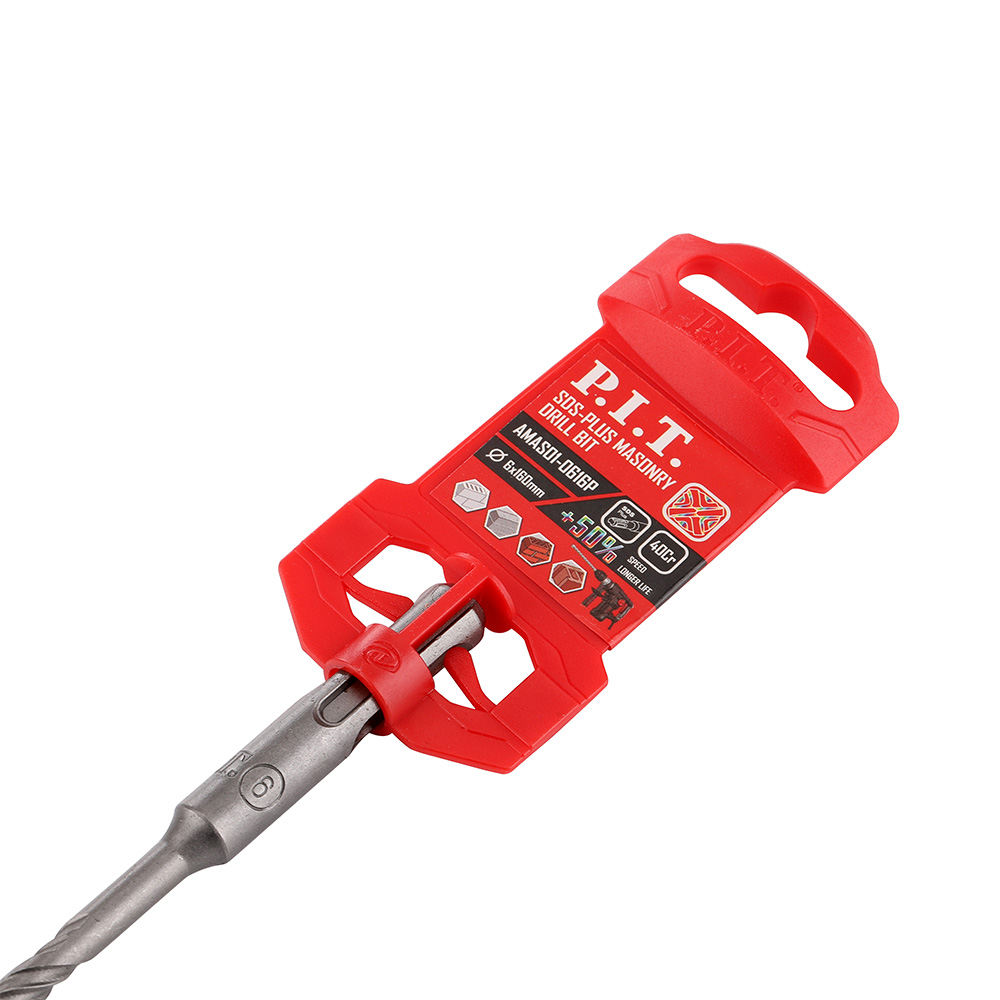

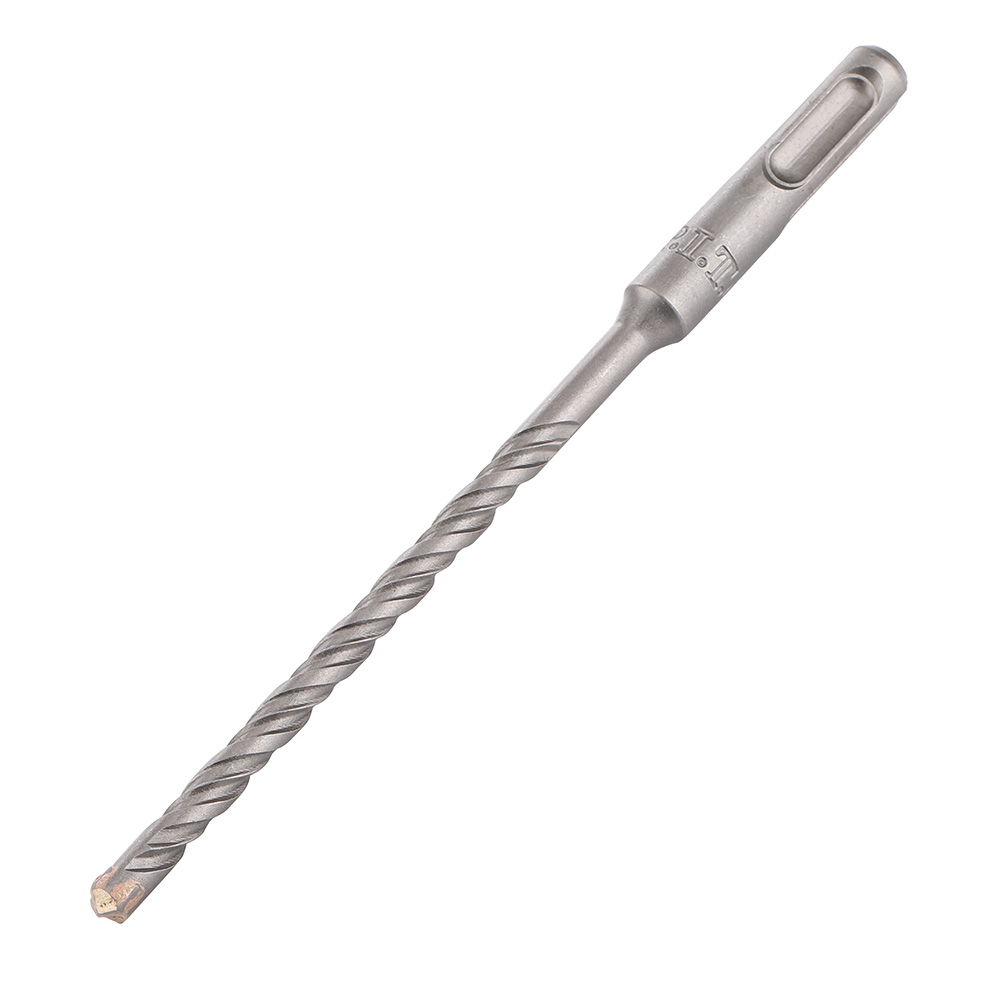

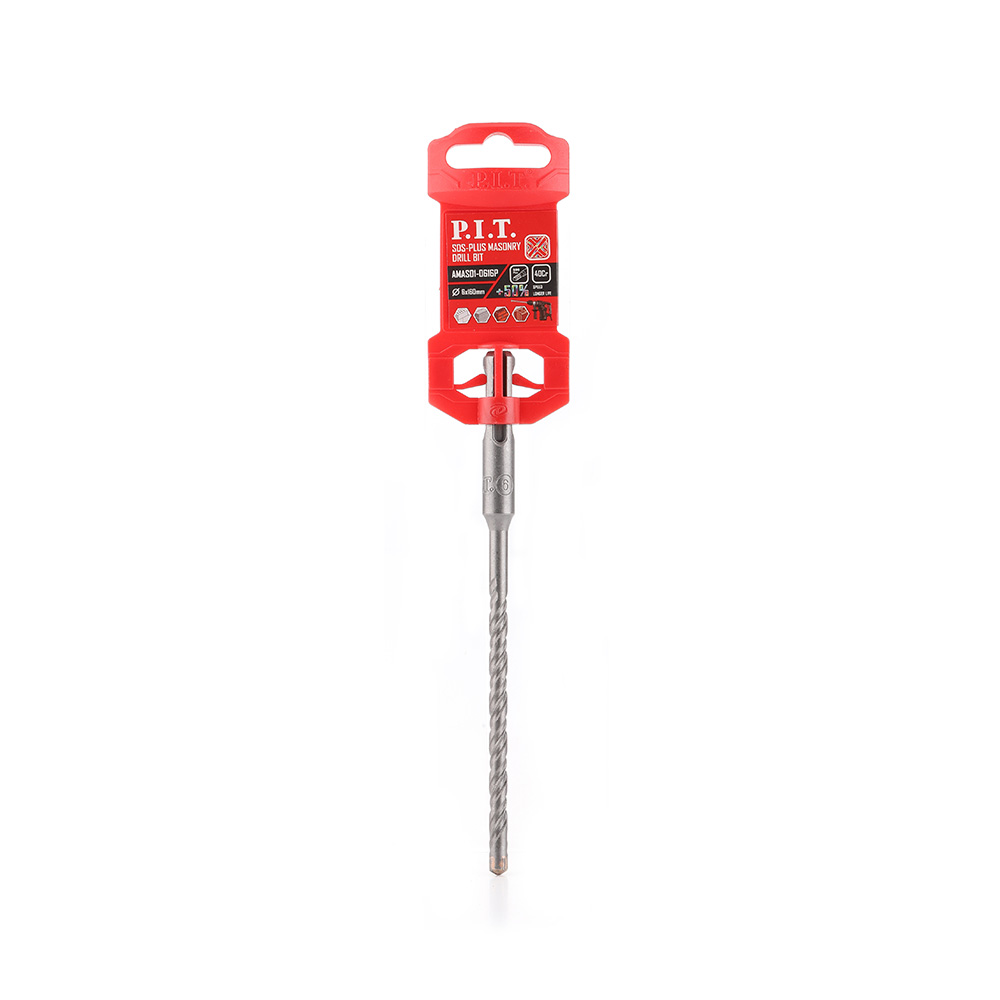

SDS PLUS MASONRY DRILL BIT
Share to :
- Description
- SPECIFICATIONS
- Customer Service
Longer service life in concrete and with reinforcement thanks to the stabilised head geometry and rounded cutting edges. Patented double-edge cutting design according to the bionic principle. An Innovative 3D spiral profile provides the ideal removal of drill dust. Fields of application: for granite, concrete, concrete reinforcement, clinker, stone, brickwork and marble. In all hammer drills with SDS-Plus adaptor and two-groove adaptor .
Model
AMAS01-0616P
Diameter (mm)
6
Work Length (mm)
90
Overall Length (mm)
160
Shank Type
SDS-Plus
Material
40CR+YG8
Type
Flat Tip with Double Flutes
Pack Quantity
1
Use with
PBH20H series (22A/22B/26A) PBH24 series (C/C1/C2/C3/C4) PBH26 series (C2-NEW/C3-NEW C4/C5/C6/C7/C8/C9) PBH28 series (C3/C4/C5/C6) PBH32 series (C4/C5/C6) LPBH24-C
